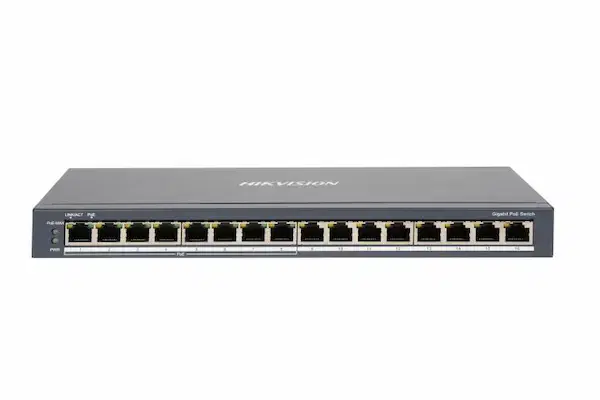

16-Port Gigabit Switch with 8 POE+ -DS-3E0516P-O
Description
· 8 × 1 Gigabit PoE port,8 × 1 Gigabit RJ45 port
· Gigabit PoE and non-PoE ports for multiple use
· Plug-and-play with easy connection
· Built to last with a rugged metal case
· Desktop/Wall-mounted installation available for any work environment
Nationwide Delivery
Coordinated shipping support
Responsive Follow-up
We help resolve order issues quickly
Secure Payments
Protected checkout experience
Careful Packaging
Handled for safer transit
ShellMetal material, fan-free design
Net Weight1.418 kg (2.204 lb)
Gross Weight0.62 kg (1.37 lb)
Dimensions (W × H × D)286.0 mm × 103.35 mm × 27.8 mm (11.26'' × 4.07'' × 1.09'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Power Supply54 V DC, 2.22 A
Surge Protection6 KV
Network Parameters
Ports8 × 1 Gigabit PoE port,8 × 1 Gigabit RJ45 port
MAC Address Table8 K
Switching Capacity32 Gbps
Packet Forwarding Rate23.81 Mpps
Internal Cache4.1 Mbits
PoE Power Supply
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
PoE StandardIEEE 802.3at,IEEE 802.3af
PoE Power Budget110 W
Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
