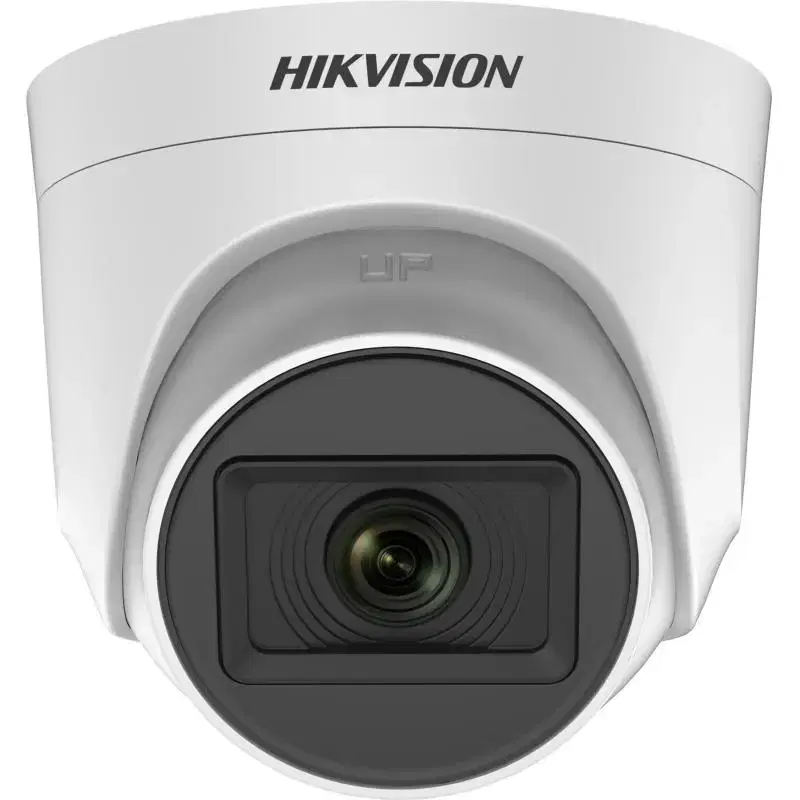

2 MP Indoor Fixed Turret Camera-DS-2CE76D0T-EXIPF

High quality imaging with 2 MP, 1920 × 1080 resolution

2.8 mm, 3.6 mm fixed lens

Up to 20 m IR distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Image Sensor2 MP CMOS

Signal SystemPAL/NTSC

Max. Resolution1920 (H) × 1080 (V)

Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & NightIR Cut Filter

Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

Lens Type2.8 mm, 3.6 mm Fixed Lens

Focal Length & FOV

2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

Lens MountM12

Illuminator

Supplement Light RangeUp to 20 m


Frame Rate

TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

CVBS: PAL/NTSC

Wide Dynamic Range (WDR)Digital WDR

Image Parameters SwitchSTD/HIGH-SAT

Day/Night ModeAuto/Color/BW (Black and White)

White BalanceAuto

Image EnhancementDWDR, BLC, Global

Noise Reduction2D DNR

Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
