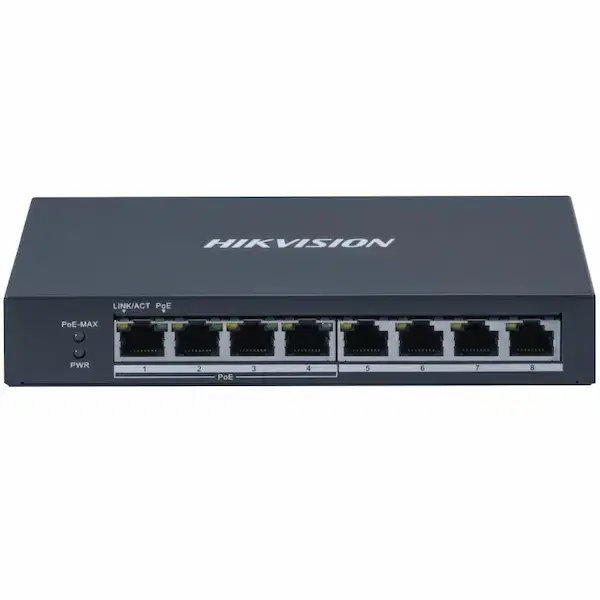

8-Port Gigabit Switch with 4 POE+- DS-3E0508P-O
Description
· 4 × Gigabit PoE port, 4 × Gigabit RJ45 port
· Gigabit PoE and non-PoE ports for multiple use
· Plug-and-play with easy connection
· Built to last with a rugged metal case
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE PortPoE: Ports 1 to 4
Max. Port Power30 W
PoE Power Budget60 W
Nationwide Delivery
Coordinated shipping support
Responsive Follow-up
We help resolve order issues quickly
Secure Payments
Protected checkout experience
Careful Packaging
Handled for safer transit
Desktop/Wall-mounted installation available for any work environment
ShellMetal material, fan-free design
Net Weight0.365 kg (0.805 lb)
Gross Weight0.921 kg (2.030 lb)
Dimensions (W × H × D)170.0 mm × 27.6 mm × 93.1 mm (6.69'' × 1.08'' × 3.66'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply48 VDC, 1.35 A
Installation ModeRack (equipped with mounting ears)
Surge Protection6 KV
Network Parameters
Ports4 × Gigabit PoE port,4 × Gigabit RJ45 port
MAC Address Table4 K
Switching Capacity16 Gbps
Packet Forwarding Rate11.90 Mpps
Internal Cache1.50 Mbits
PoE Power Supply
