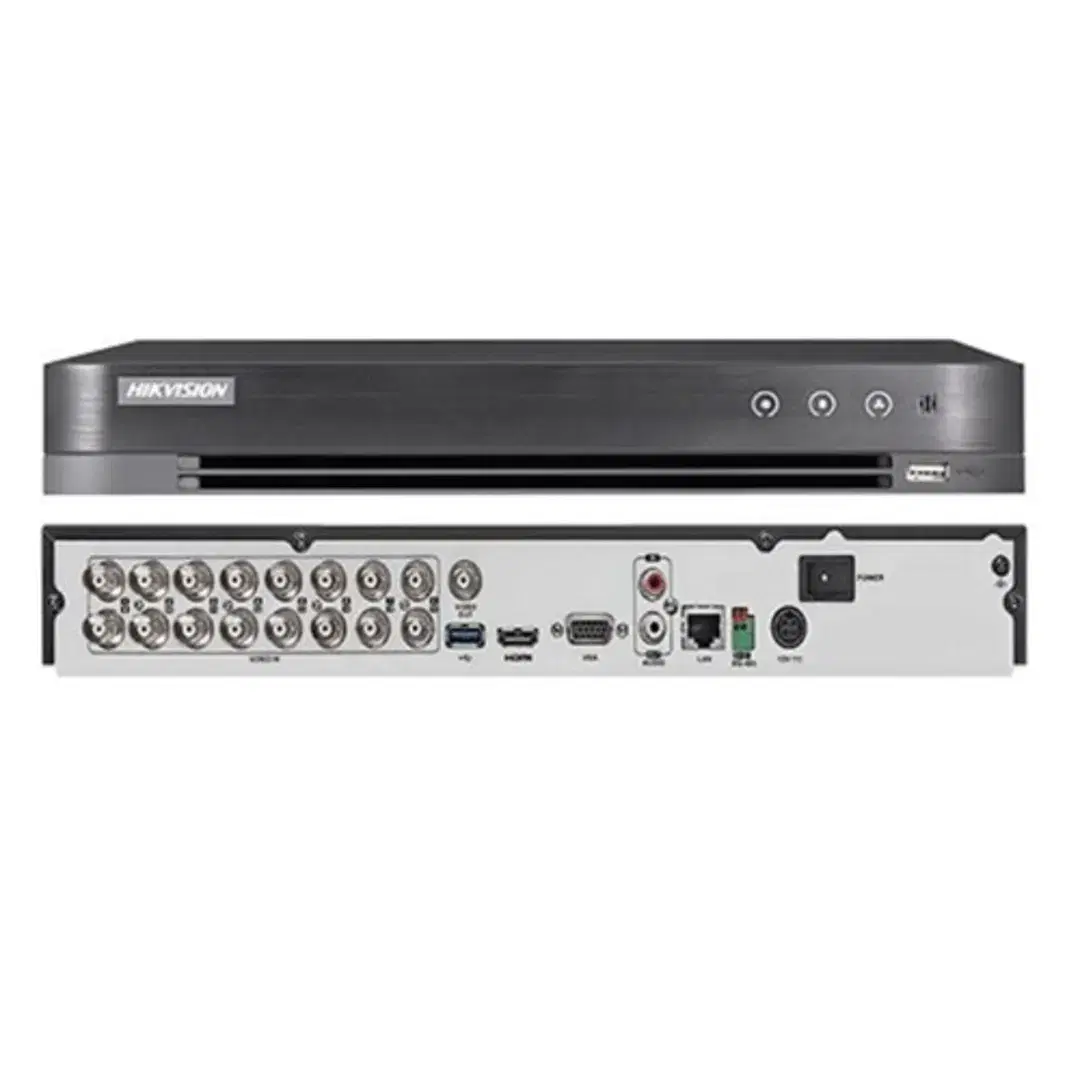

HikVision 16 Channel Dvr 1080p - Dvr -Ds-7216hghi-k1

SPECIFICATIONS

· 16 channels and 2 HDDs 1U DVR

· Efficient H.265 pro+ compression technology

· Encoding ability up to 1080p lite @ 15 fps

· 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

· Up to 18 network cameras can be connected

· Video Bit Rate      32 Kbps to 4 Mbps

· Video Compression       H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

· Dual Stream         Support

· Stream Type        Video, Video & Audio

· Audio Compression      G.711u

· Audio Bit Rate     64 Kbps

· Video And Audio

· Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)

· Audio Output1-ch, RCA (Linear, 1 KΩ)

· Synchronous Playback16-ch

· IP Video Input      2-ch (up to 18-ch);Up to 5 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras

· HDTVI Input         1080p25, 1080p30, 720p25, 720p30

· HDCVI Input         1080p25, 1080p30, 720p25, 720p30

· CVBS Input          PAL/NTSC

· Two-Way Audio   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

· Analog Video Input       16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

· AHD Input1080p25, 1080p30, 720p25, 720p30

· CVBS Output        N/A

· HDMI/VGA Output        1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output

· Network

· Network Protocols       TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

· Remote Connections     128

· Network Interface         1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

· Capacity     Up to 10 TB capacity for each disk

· Serial Interface     N/A

· USB Interface       2 × USB 2.0

· Alarm In/Out       N/A

· SATA2 SATA interface

· General

· Consumption(Without HDD)≤ 10 W

· Working Humidity        10% to 90%

· Power Supply      12 VDC

· Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

· Dimensions(W × D × H)         380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)

· Weights (Without HDD)         ≤ 2.0 kg (4.4 lb)
